Convergence Problems

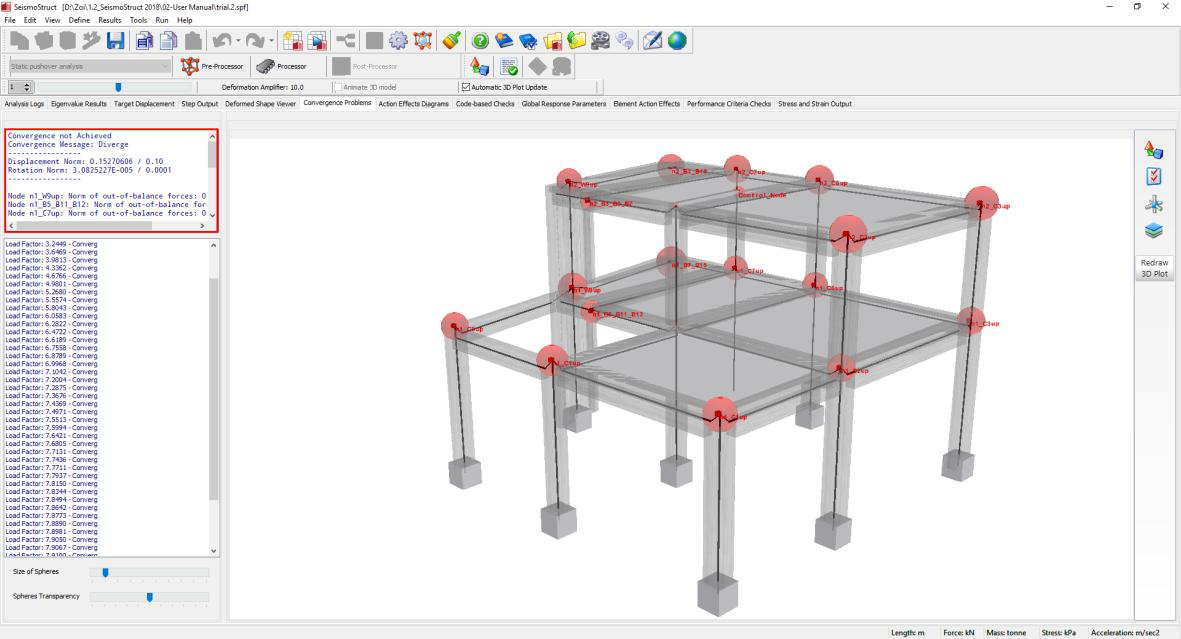

Whenever convergence problems arise, users may be informed about the elements that cause the diverging solutions. The elements or the locations of the structure, where the convergence problems are caused, are marked in the 3D view format, whereas information about the type of divergence (value of convergence norms and their limits, divergence message and the corresponding elements or nodes) are displayed on the top-left corner of the screen.

Note: Users should activate in Convergence Criteria the option of showing convergence difficulties in Post-Processor in order to be able to view the Convergence Problems tab in the Post-Processor.
