Loads - Graphical Input

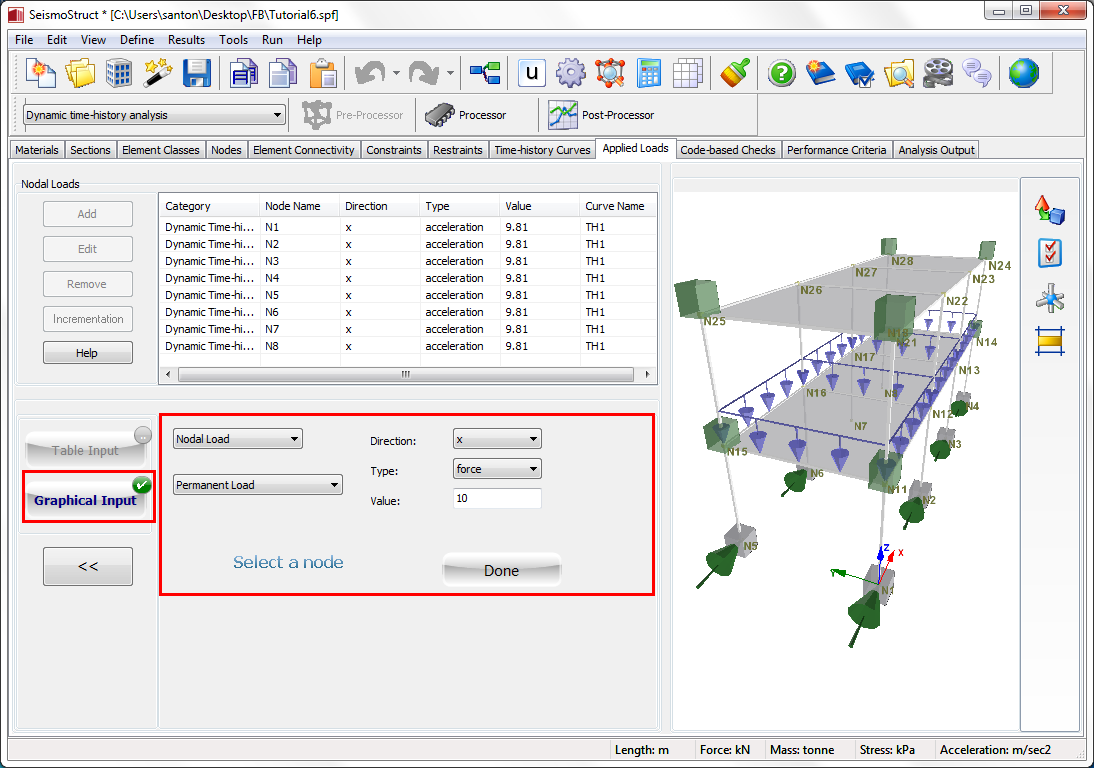

The user can also add loads through the Graphical Input button. First the user has to select the type of load, assign its properties and double-click on the node/element to define the load, as illustrated in the figure below.

1. Select between the nodal and element load.
2. Define the category, direction, type, value and curve (if needed) of the load.
3. Double-click to a node to define a nodal load or to an element to define an element load.
