Element connectivity - Graphical Input

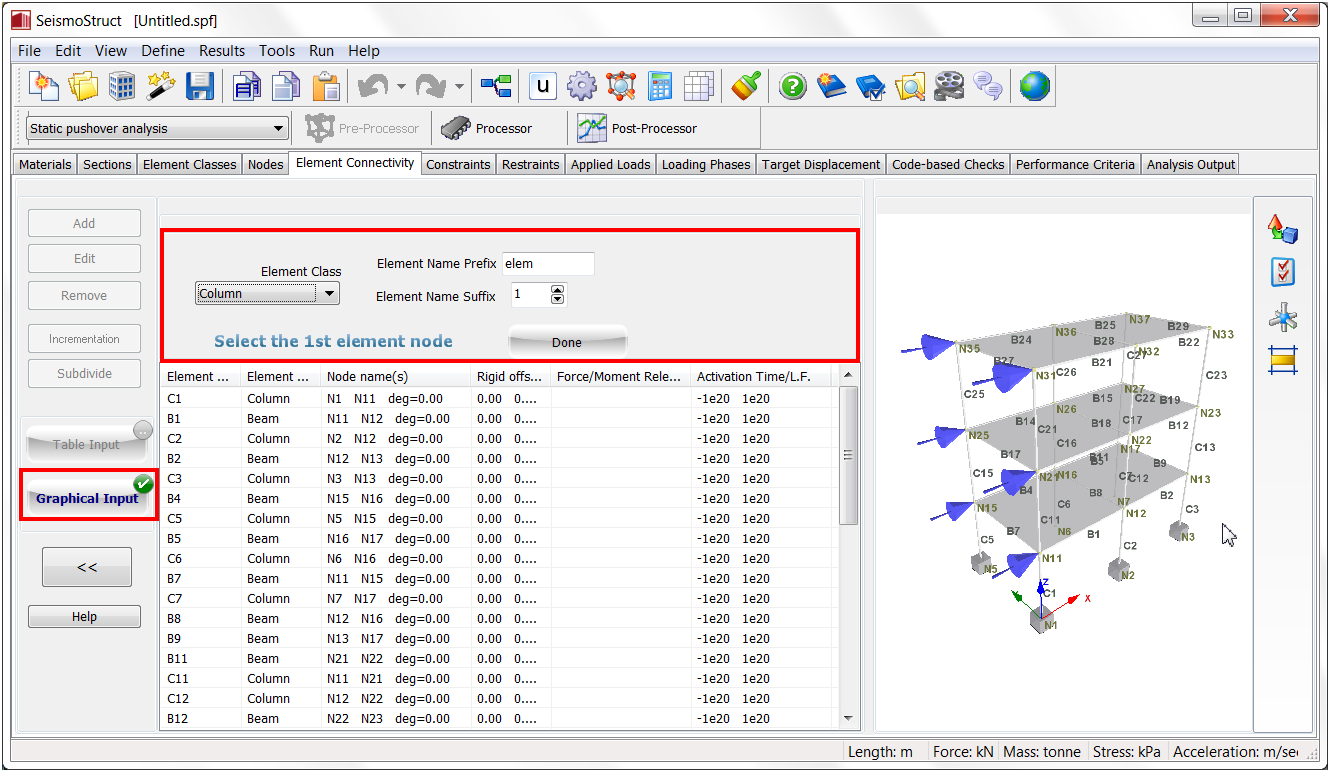

The user can also add the elements through the Graphical Input button. First the user has to select the Element Class type, then he/she has to select the corresponding element nodes, as illustrated below:

1. Select the class name from the drop-down menu.
2. Double-click to define all the element nodes (depending on the number of nodes required).
3. Element's generation, the name of the new element is the concatenation of the element prefix and the element suffix.

Note: The number of element nodes which need to be selected depends on the Element Class.
