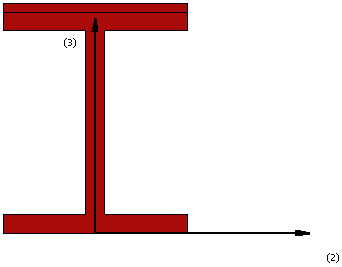

I section with top plate – itp

This is a section frequently adopted for the modelling of I-shaped steel profiles with top plate.

Materials and Dimensions

Two different materials (steel) can be defined

• Steel profile (I Section),
• Steel profile (Plate).

The required dimensions are as follows:

• Flange width. The default value is 0.2 m
• Flange thickness. The default value is 0.02 m
• Web width. The default value is 0.2 m
• Web thickness. The default value is 0.02 m
• Top Plate Width. The default value is 0.2 m
• Top Plate Thickness. The default value is 0.01 m
