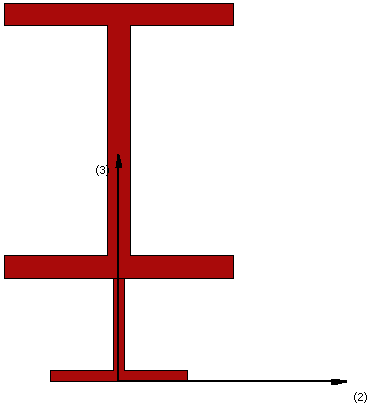

I section reinforced with bottom T section – ibrt

This is a section frequently adopted for the modelling of I-shaped steel profiles reinforced with T-shaped steel profiles.

Materials and Dimensions

Two different materials (steel) can be defined

• Steel profile (Upper I Section),
• Steel profile (Lower T Section).

The required dimensions are as follows:

• I Section Flange Width. The default value is 0.2 m
• I Section Flange Thickness. The default value is 0.02 m
• I Section Web Width. The default value is 0.2 m
• I Section Web thickness. The default value is 0.02 m
• T Section Flange Width. The default value is 0.12 m
• T Section Flange Thickness. The default value is 0.01 m
• T Section Web Width. The default value is 0.08 m
• T Section Web thickness. The default value is 0.01 m
