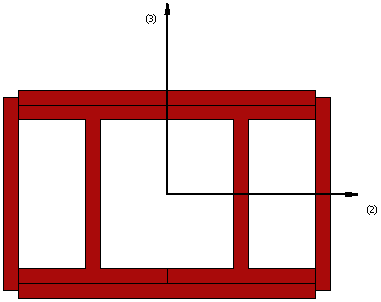

Double I type 2 section with top, bottom and web plates - di2tbwp

This is a section frequently adopted for the modelling of double I steel profiles without distance between the flanges with top, bottom and web plates.

Materials and Dimensions

Two different materials (steel) can be defined:

• Steel profile (I Sections),
• Steel profile (Plates).

The required dimensions are as follows:

• Flange width. The default value is 0.2 m
• Flange thickness. The default value is 0.02 m
• Web height. The default value is 0.2 m
• Web thickness. The default value is 0.02 m
• Top-Bottom Plate Width. The default value is 0.4 m
• Top-Bottom Plate Thickness. The default value is 0.02 m
• Web Plate Width. The default value is 0.26 m
• Web Plate Thickness. The default value is 0.02 m
