Double I type 1 section with web plates - di1wp

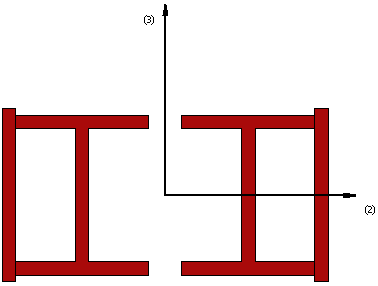

This is a section frequently adopted for the modelling of double I steel profiles with distance between the flanges with web plates.

Materials and Dimensions

Two different materials (steel) can be defined:

• Steel profile (I Sections),
• Steel profile (Plates).

The required dimensions are as follows:

• Flange width. The default value is 0.2 m
• Flange thickness. The default value is 0.02 m
• Web height. The default value is 0.2 m
• Web thickness. The default value is 0.02 m
• Flange to Flange distance. The default value is 0.05 m
• Reinforcing Plate Width. The default value is 0.26 m
• Reinforcing Plate Thickness. The default value is 0.02 m
