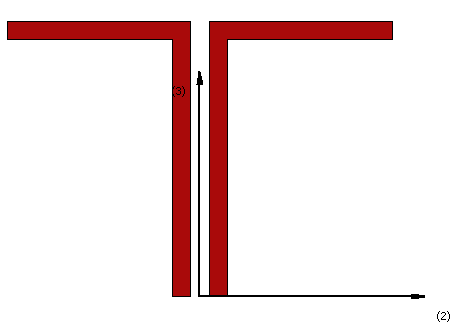

Double angle or channel shaped section - dacss

Materials and Dimensions

Only one material (steel) needs to be defined.

The required dimensions are as follows:

• Bottom flange width. The default value is 0.01 m
• Bottom flange thickness. The default value is 0.01 m
• Top flange width. The default value is 0.1 m
• Top flange thickness. The default value is 0.01 m
• Web height. The default value is 0.13 m
• Web thickness. The default value is 0.01 m
• Web to web distance. The default value is 0.01 m
