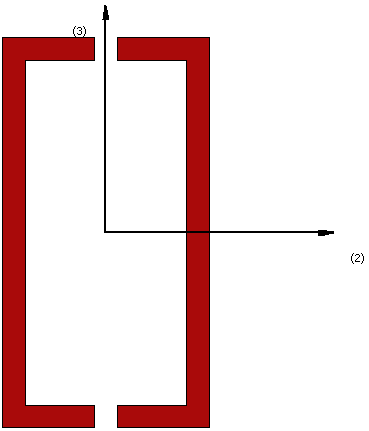

Built up box double channel section - bbdc

This is a section frequently adopted for the modelling of double C channel steel profiles.

Materials and Dimensions

Only one material (steel) needs to be defined.

The required dimensions are as follows:

• Flange width. The default value is 0.08 m
• Flange thickness. The default value is 0.02 m
• Web height. The default value is 0.3 m
• Web thickness. The default value is 0.02 m
• Flange to Flange distance. The default value is 0.02 m
