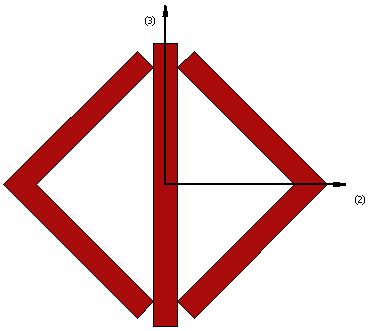

Built up box double angle section with connecting plate– bbdacp

This is a section frequently adopted for the modelling of double angle steel profiles with connecting plate.

Materials and Dimensions

Two different materials (steel) can be defined

• Steel profile (Angle Sections),
• Steel profile (Plate).

The required dimensions are as follows:

• Flange width. The default value is 0.08 m
• Flange thickness. The default value is 0.01 m
• Reinforcing Plate Width. The default value is 0.12 m
• Reinforcing Plate Thickness. The default value is 0.01 m
