Inverse Beams

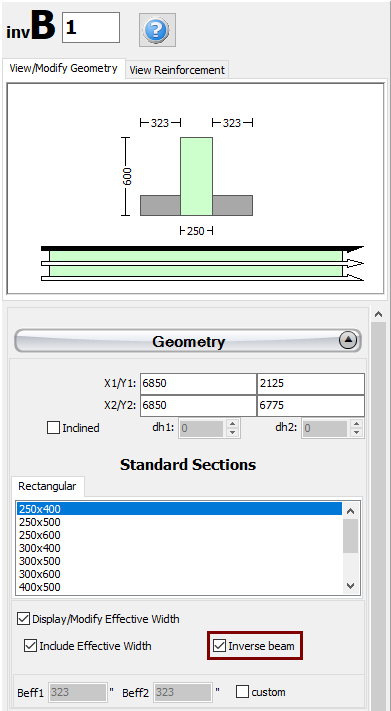

After assigning the beams and the slabs of the structural model, users may define inverse beams. In order to do so, select the beam to visualise its Properties Window, select the Display/Modify Effective Width and the Include effective width checkboxes. The latter must be enabled, so that to be able to activate the Inverse beam checkbox.

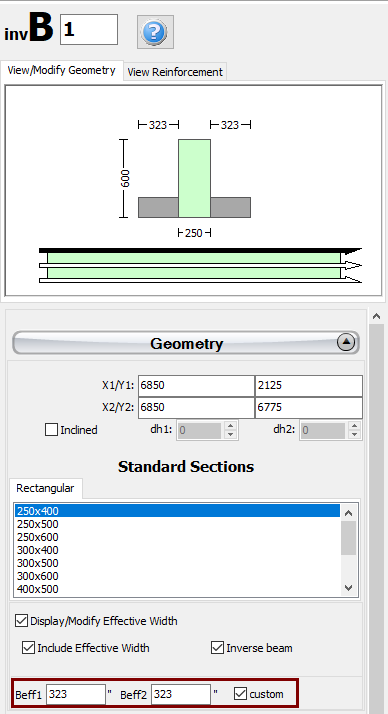

The effective width is automatically calculated, but users have also the ability to customise its value.
