Insert Cantilever Slabs

In order to introduce a cantilever slab, a Free Edge must be drawn first to outline the shape of the slab. The Free Edge may be inserted from the main menu (Insert > Free Edge) or through the corresponding toolbar button .

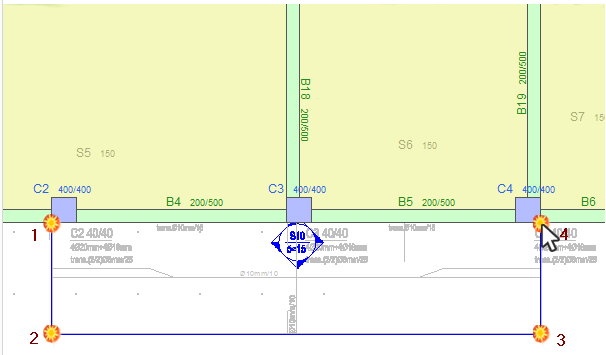

After defining the Free Edge's corner points, the Apply button should be clicked on the Properties Window to complete its insertion. Alternatively, with the Reset button user may decide to redraw the free edge.

When the Free Edge is successfully defined users can insert a new slab, by clicking in the area surrounded by the Free Edge and the structural elements (columns, walls and beams).
