Inclined Beams

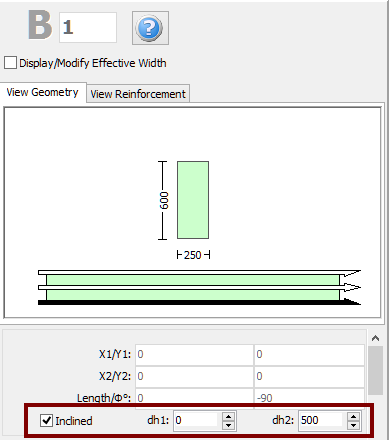

Inclined beams may be efficiently modelled in Building Modeller. On the beam's Properties Window users should enable the Inclined checkbox and specify the elevation differences of the two beam ends relatively to the storey height.

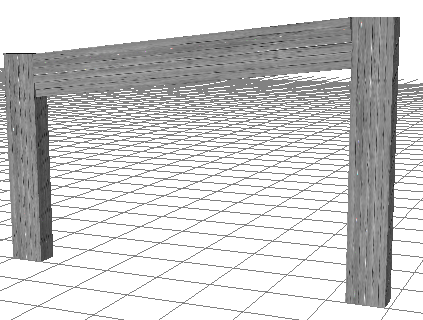

It is noted that the heights of the columns that support the beam are then automatically adapted to the elevation of the beam's edges.
