Foundation

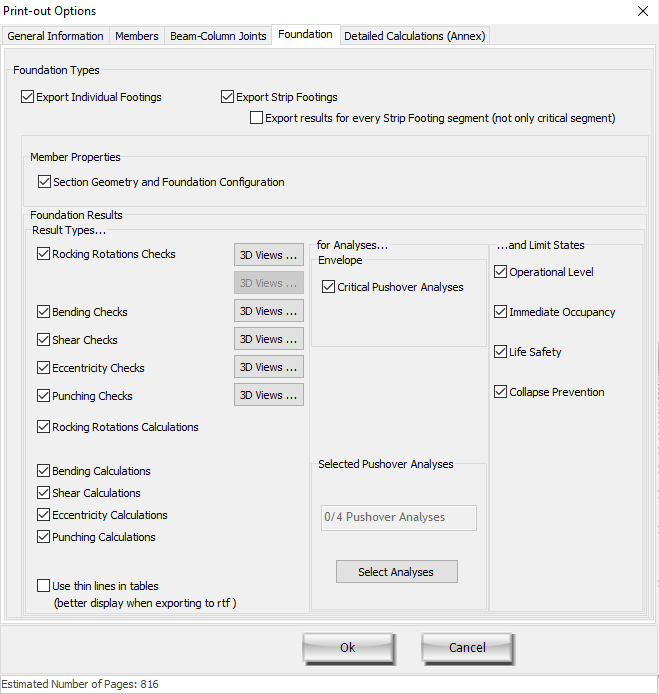

In the Foundation module users may determine the information about the foundation checks that are to be exported in the technical report. It is also possible not to output any information by disabling the Export Individual Footings and Export Strip Footings check-boxes.

Users may select whether to export just simple or detailed information about the geometry and the configuration of the foundation. It is noted that the exported results for the foundation may differ depending on the selected Code. Finally, the limit states for which the results will be exported, as well as the corresponding 3D Views can be defined.

Notes

1. The module is active only if one, or more, of the checks regarding the foundation has been carried out.
2. The option of selecting the envelope of the most critical analyses or the average values is available. The latter is available in nonlinear dynamic procedure only. Otherwise specific analyses may be selected through the Select Analyses button.
3. The 3D plot view is modified in the report once the Update Report View button is selected.
