Detailed Calculations (Annex)

In the Detailed Calculations (Annex) module users may select the members and the beam-column joints, for which detailed check calculations are to be output in the technical report. This module is available for nonlinear static procedure.

Members Checks Calculations

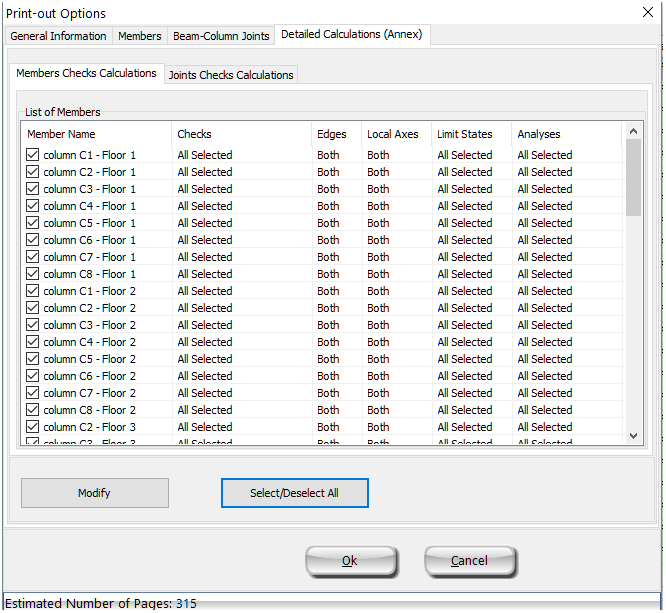

The detailed Members’ Checks Calculations may be exported to the technical report according to the employed equations of the selected Code for the calculation of the capacity values. Users may select the information to export per member, i.e. for which check type, edge, axis, limit state and pushover analysis, by selecting the member and the ‘Modify’ button. The default selection is to export all the members’ checks calculations for the selected members.

Joints Checks Calculations

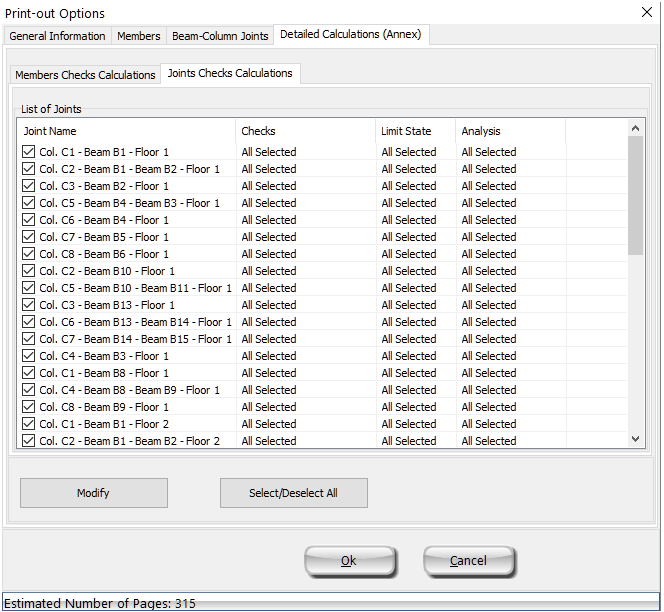

The detailed Joints’ Checks Calculations may be exported to the technical report according to the employed equations of the selected Code. Users may select the information to export per joint, i.e. for which check type, limit state and pushover analysis, by selecting the joint and the ‘Modify’ button. The default selection is to export all the joints’ checks calculations for the selected joints.

Note: Exporting detailed calculations for many members and beam/column joints increases considerably the size of the report (i.e. to several thousands of pages), hence this facility such be used with consideration.
