Eigenvalue Analysis Results

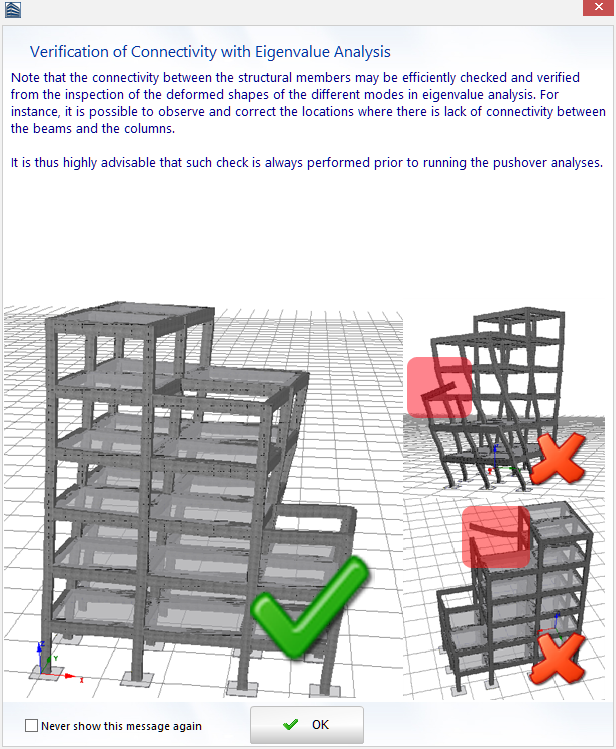

When the analysis is completed an informative message appears suggesting to check the deformed shapes of the different modes for possible connectivity problems between the beams and the columns.

Users may go to view the results by clicking the Show Results button. The results of the analysis are saved in a SeismoBuild Results File, distinguishable by its *_Eig.brf extension, with the same name as the input project file.

The available modules in the Show Results area are:

• Deformed Shape Viewer
• Modal/Mass quantities
• Step Output
• Analysis logs
