Program Settings

As discussed in other sections of this Help System, it is possible to customise the usability of the program, so as to better suit the needs and/or preferences of a particular user. This program/project tweaking facility is available from the Program Settings panel, that can be accessed through Tools > Settings… or through the corresponding toolbar button . The Program Settings panel is subdivided into three tab windows, which provide access to different type of settings, described below. It is noted that changes to such settings will only be effected for records that were loaded after these changes.

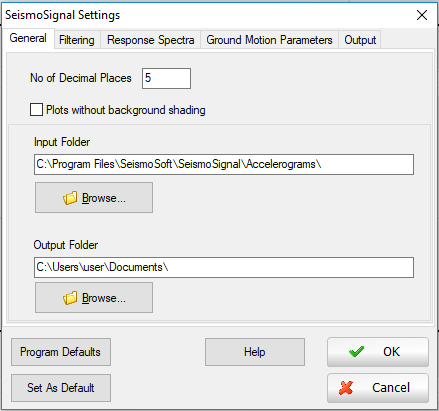

General
Herein, the user may define the number of decimal places to be used in the display of results, as well as changing the default folders from where original records my be read and processed records written to. In addition, users may also disable background shading of plots, which may be useful for printing purposes.

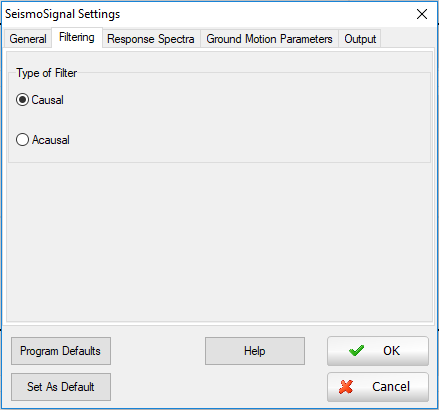

Filtering
Herein, the user may choose whether causal or acausal filters will be employed when lowpass, highpass, bandstop or bandpass filtering is carried out on the accelerogram. Causal filters are used by default.

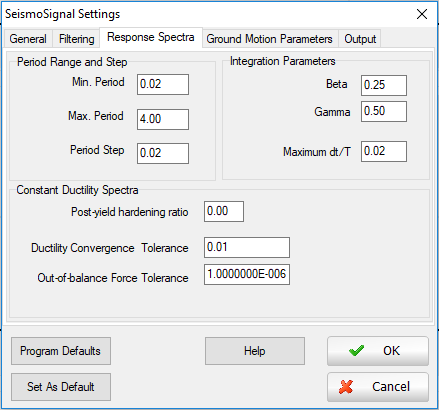

Elastic/Inelastic Response spectra
Through this panel a user can define the period range and step to be considered in the computation of the response spectra, the dynamic analysis integration parameters (also employed in the computation of response spectra), as well as the hardening ratio and convergence criteria for constant-ductility inelastic spectra calculations. Refer to here for further details.

Ground motion parameters
Using this module the user is able to define the values of variables that are used for the computation of certain Ground Motion Parameters.

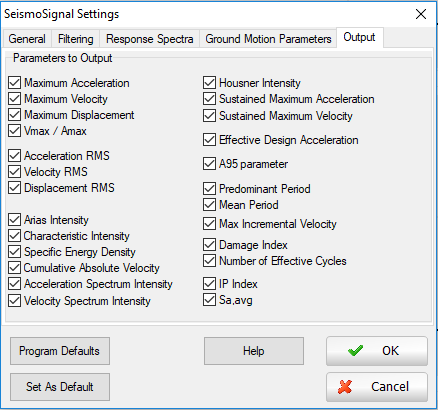

Output
Using this module, the user is able to select which ground motion parameters will be computed and shown as output by the program.

Common to all tab windows are the Program Defaults and Set as Default options found at the bottom of the Program Settings panel. The Set as Default option is employed whenever the user wishes to define new personalised default settings, which will then be used in all new projects subsequently created. The Program Defaults, on the other hand, can be used to reload, at any time, the original program defaults, as defined at installation time.

Note, however, that the Program Defaults option does not change the default program settings, it simply loads the installation settings in the current project. Hence, if the user has previously personalised the default settings of the program (using the Set as Default option) and then wishes to revert the program default settings back to the original installation defaults, he/she should first load the Program Defaults and then choose the Set as Default option.
