Program Settings

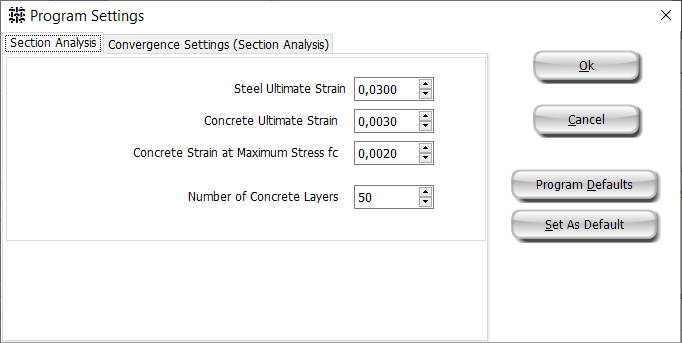

The program settings window can be accessed by pressing the settings button. In the settings window in the Section Analysis tab, certain material parameters used during the section analysis can be specified, namely:

• the steel ultimate strain
• the concrete ultimate strain
• the concrete strain at Maximum stress
• the number of concrete layers

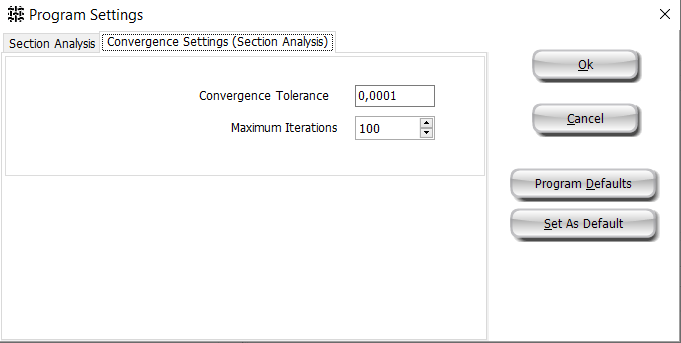

In the convergence settings tab, the Convergence tolerance and Max Iterations to be used during iterative procedures carried out for the identification of the compression zone are defined.
